Featuring two engine options and a two-year warranty, the Scag® Tow-Behind Truck Loader delivers peace of mind for operators that need a machine that can keep up with them. Designed firstmost with durability in mind, the Tow-Behind Truck Loader can handle whatever a job throws at it. Simply put, this machine is built to keep going and going.

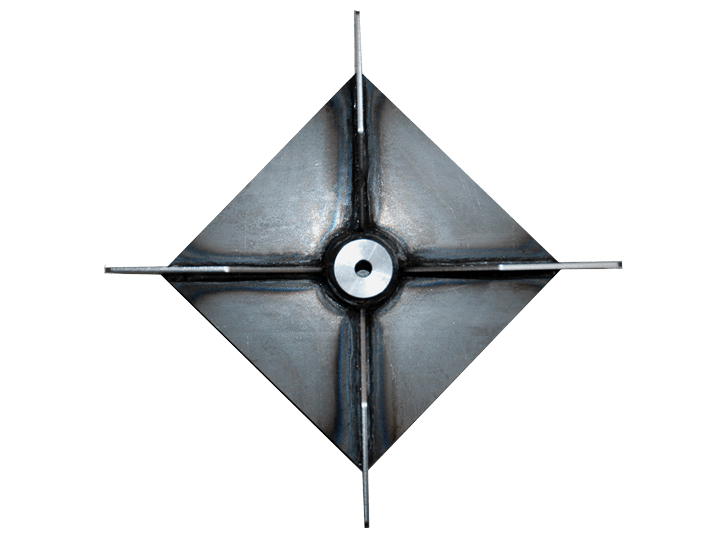

Within the unit’s 7.5″-wide housing is a welded-steel impeller with 3/8″-thick steel blades. Dynamically balanced for reduced vibration, longer life and less stress on the engine, these loaders boast an effective, high-output (up to 4,680 CFM), debris-reducing design.
Choose from three different tongue lengths to best fit your specific application. A height-adjustable hitch gives the best fit to your truck. Standard 2″ ball coupler will also accept a 2 5/16″ ball or pintle hitch.
Within the unit’s 7.5″-wide housing is a welded-steel impeller with 3/8″-thick steel blades. Dynamically balanced for reduced vibration, longer life and less stress on the engine, these loaders boast an effective, high-output (up to 4,680 CFM), debris-reducing design.
1/4″-thick, bolt-in, replaceable wear liner extends service life. Removable rear-housing cover allows easy access to impeller and wear plates.

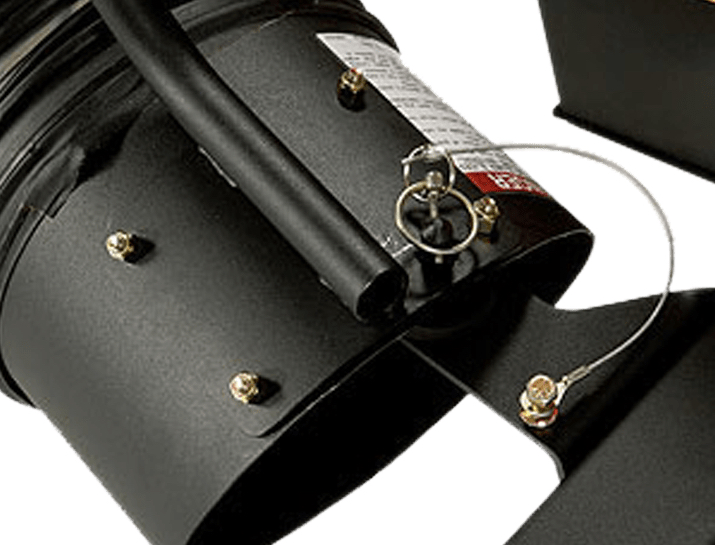

Transport lock safely secures the boom arm and hose when not in use; nylon bearing delivers smooth movement. A transport pin locks the nozzle to the loader to help protect the hose during transportation.
Padded, large-diameter handle is designed for increased leverage and easy maneuverability.

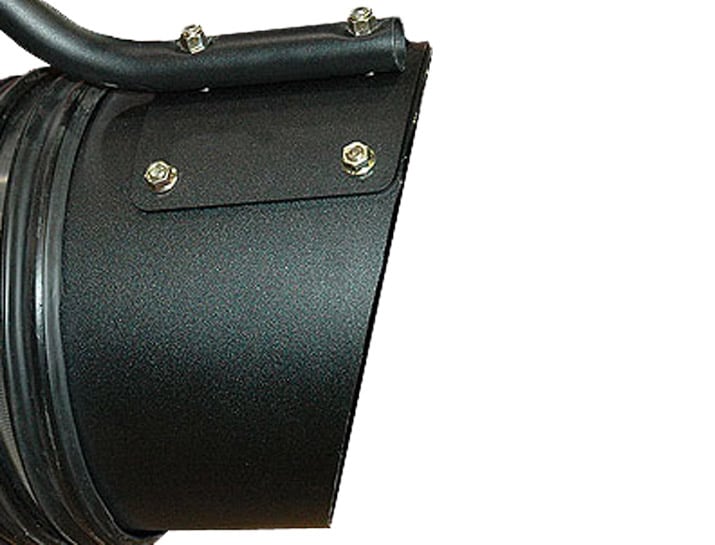

Large, replaceable intake nozzle is beveled to make debris pickup easy.

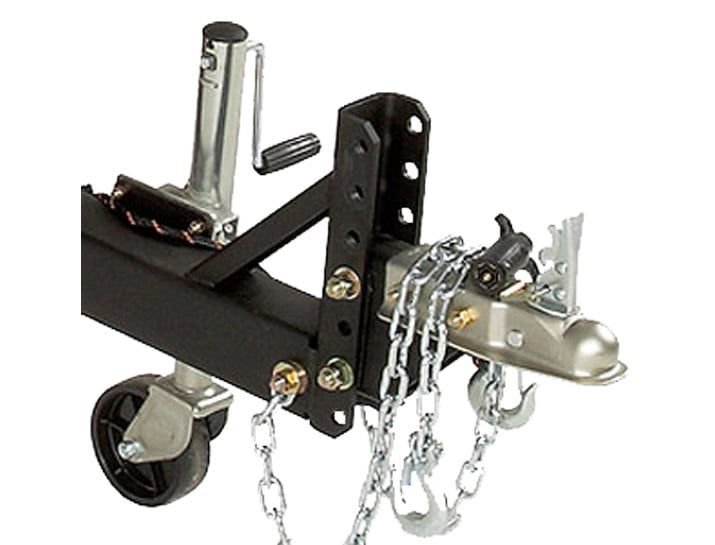

Choose from three different tongue lengths to best fit your specific application. A height-adjustable hitch gives the best fit to your truck. Standard 2″ ball coupler will also accept a 2 5/16″ ball or pintle hitch.
Built-in, 3-hole tool holder with rubber rings protects handles from damage.

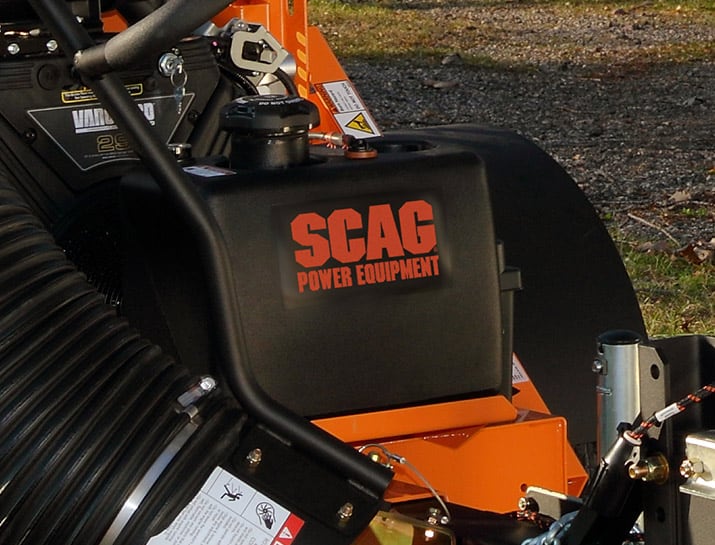

High-capacity, 5.5-gallon, plastic fuel tank with large filler neck for easy filling keeps you on the job. Built-in fuel gauge adds convenience and eliminates guesswork.

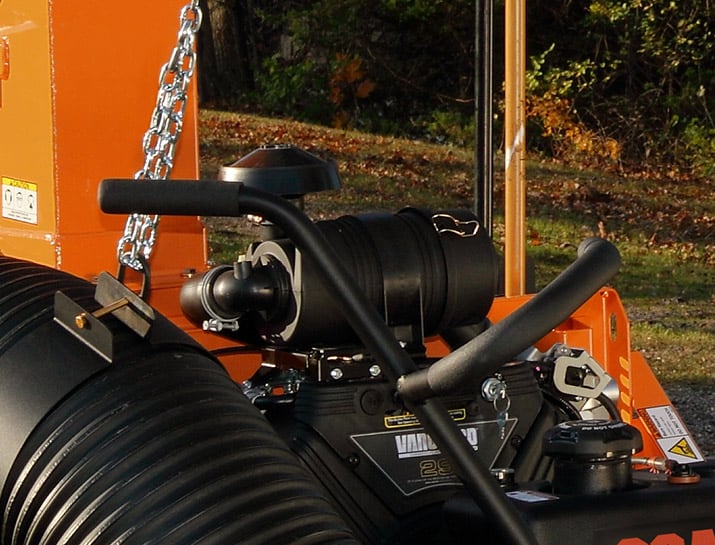

Choose from a 26.5 hp Kohler® Command PRO® EFI or a 29 hp Vanguard® BIG BLOCK™ gasoline engine.
| Specification | Tow-Behind | |
|---|---|---|
| Model | TL20W-26CH-EFI | TL20W-33BV |
| Engine | Kohler® Command PRO® EFI, V-Twin, electric start | Briggs & Stratton® Vanguard™ BIG BLOCK™, V-Twin |
| HP* | 26.5 | 33 |
| Fuel Capacity / Tank | 5.5 gallons – plastic tank with built-in fuel gauge | 5.5 gallons – plastic tank with built-in fuel gauge |
| CFM Output | 4,680 | 4,680 |
| Frame Construction | All-steel, welded | All-steel, welded |
| Impeller Construction | 4-blade, 3/8″-thick blades, all-steel, welded | 4-blade, 3/8″-thick blades, all-steel, welded |
| Impeller Mounting | Tapered locking hub | Tapered locking hub |
| Impeller Diameter / Width | 20″ / 6.5″ | 20″ / 6.5″ |
| Blower Housing Construction | Removable back panel for easy impeller and wear plate access | Removable back panel for easy impeller and wear plate access |
| Blower Housing Width | 7.5″ | 7.5″ |
| Blower Housing Wear Plates | Standard: 1/4″-steel, replaceable | Standard: 1/4″-steel, replaceable |
| Intake Hose Specifications | 120″ length, 12″-diameter intake hose, 0.045 blue thermoplastic rubber, wire helix with wearstrip | 120″ length, 12″-diameter intake hose, 0.045 blue thermoplastic rubber, wire helix with wearstrip |
| Unit Mounting | Hitch: Class III minimum | Hitch: Class III minimum |
| Discharge Tube | Clear thermoplastic, 8″ diameter, 60″ length | Clear thermoplastic, 8″ diameter, 60″ length |
| Throttle Control | Commercial-grade, all-steel mechanicals, plastic debris cover | Commercial-grade, all-steel mechanicals, plastic debris cover |
| Highway Ready** | Yes – optional roadside package | Yes – optional roadside package |
| Axle | Heavy-duty Dexter Torflex® axle (2,000 lb) | Heavy-duty Dexter Torflex® axle (2,000 lb) |
| Tires | 205 / 75 R15 highway tires with steel wheels | 205 / 75 R15 highway tires with steel wheels |
| Trailer Width | 53.5″ | 53.5″ |

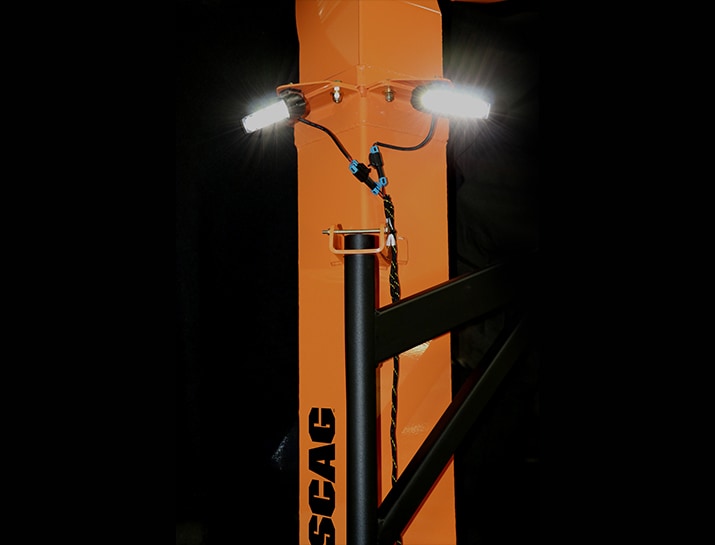

| Accessories | Light Kit, Roadside Kit | Light Kit, Roadside Kit |
| Height | 110″ | 110″ |
| Weight | 990 lb | 1,060 lb |
| Warranty | 2-Year Commercial; 2-Year Non-Commercial; 90-Day Rental | 2-Year Commercial; 2-Year Non-Commercial; 90-Day Rental |
| MSRP | $11,049 | $10,599 |
| * Engine power levels as rated by the manufacturer. All models subject to availability. ** Reference your local regulations to ensure compliance. Contact your local Scag dealer for specific availability information. |
||
