With a steel beveled intake nozzle that makes debris pickup easy and ambidextrous handle for enhanced maneuverability, it’s time to stand your ground with the Skid-Mount. Its welded-steel impeller with 3/8″-thick steel blades are balanced for reduced vibration and put less stress on the engine—delivering performance for years to come.
Within the unit’s 6″-wide housing is a welded-steel impeller with 3/8″-thick steel blades. Dynamically balanced for reduced vibration, longer life and less stress on the engine, these loaders boast an effective, high-output (up to 3,075 CFM), debris-reducing design.

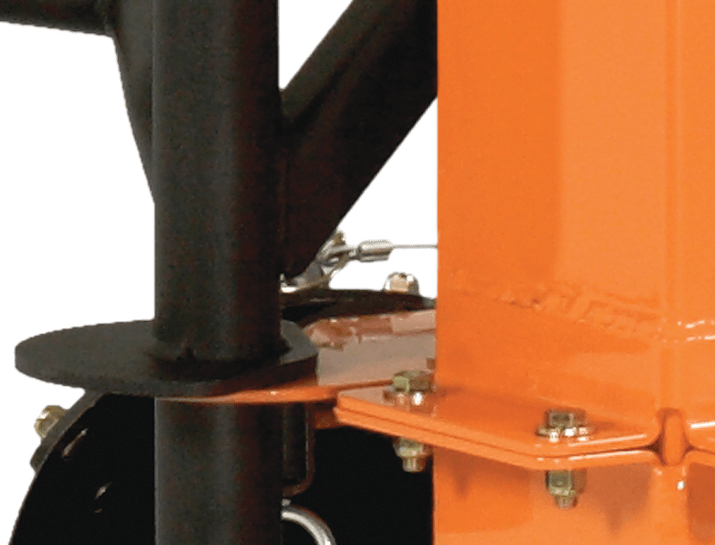

Transport lock safely secures the boom arm and hose when not in use; nylon bearing delivers smooth movement. A transport pin locks the nozzle to the loader to help protect the hose during transportation. Quick-detach hose also allows for quick and easy transport, storage and cleaning.
Within the unit’s 6″-wide housing is a welded-steel impeller with 3/8″-thick steel blades. Dynamically balanced for reduced vibration, longer life and less stress on the engine, these loaders boast an effective, high-output (up to 3,075 CFM), debris-reducing design.
1/4″-thick, bolt-in, replaceable wear liner extends service life. Removable rear-housing cover allows easy access to impeller and wear plates.
Transport lock safely secures the boom arm and hose when not in use; nylon bearing delivers smooth movement. A transport pin locks the nozzle to the loader to help protect the hose during transportation. Quick-detach hose also allows for quick and easy transport, storage and cleaning.

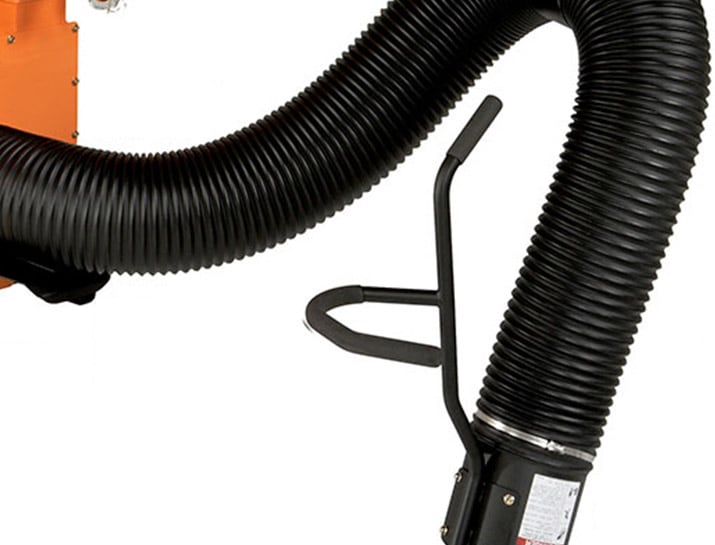

Padded, large-diameter handle is designed for increased leverage and easy maneuverability.

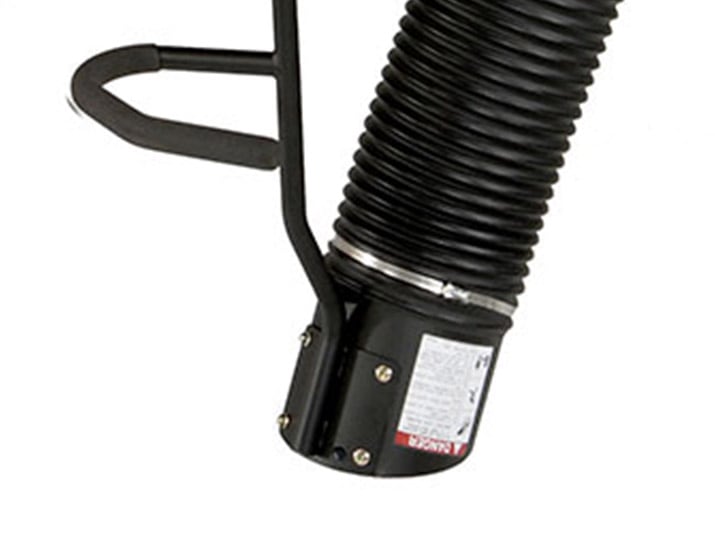

Large, replaceable intake nozzle is beveled to make debris pickup easy.
Four-inch skid risers with fork pockets have multiple install points to fit a wider variety of applications, or they can be completely removed.

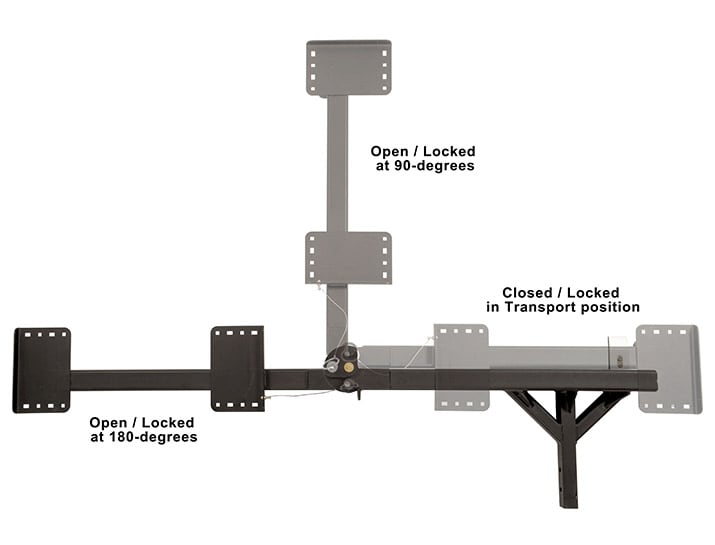

Swing-away design allows the loader to move for dumping/removing debris from the truck. There are three (3) locking positions for exceptional versatility. Fits TLS20-18BV model only.

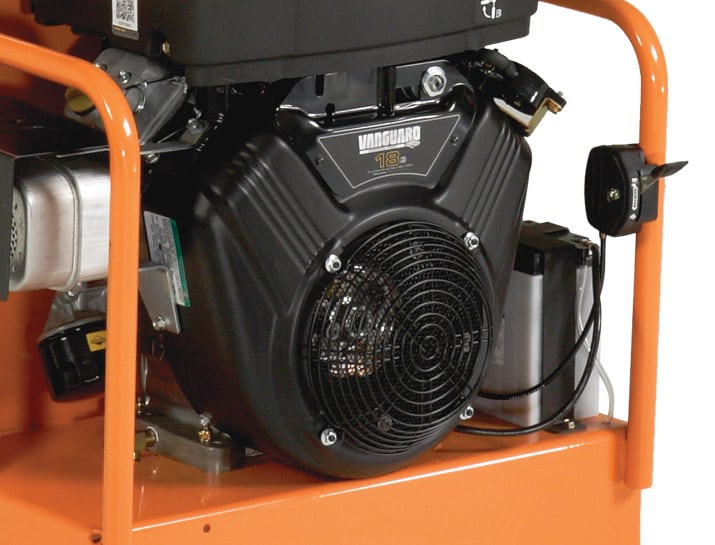

Powered by an 18 hp Vanguard® gasoline, V-twin engine with electric start.
| Product Specification | Skid-Mount |
|---|---|
| Model | TLS20-18BV |
| Fuel Capacity / Tank | 1.75 gallons – engine-mounted metal tank |
| CFM Output | 3,075 |
| Frame Construction | All-steel, welded |
| Impeller Construction | 4-blade, 3/8″-thick blades, all-steel, welded |
| Impeller Mounting | Tapered locking hub |
| Impeller Diameter / Width | 20″ / 5.25″ |
| Blower Housing Construction | Removable back panel for easy impeller and wear plate access |
| Blower Housing Width | 6″ |
| Blower Housing Wear Plates | Standard: 1/4″-steel, replaceable |
| Hose Specifications | 120″ length, 10″-diameter intake hose, 0.045 black thermoplastic rubber, wire helix with wearstrip |
| Unit Mounting | 4″ steel skid risers |
| Discharge Tube | Clear thermoplastic, 7″ diameter |
| Throttle Control | Commercial-grade, all-steel mechanicals, plastic debris cover |
| Highway Ready | n/a |
| Axle | n/a |
| Tires | n/a |
| Trailer Width | n/a |
| Height | 74.25″ (without skid or hitch mount attached) |
| Weight | 437 lb |
| Warranty | 2-Year Commercial; 2-Year Non-Commercial; 90-Day Rental |
| MSRP | $5,389 |
| Contact your local Scag dealer for specific availability information. | |
