Powered by a 29 hp Vanguard® Big Block gasoline, V-twin engine, nothing escapes the Industrial Skid-Mount and its unmatched strength. With safe and convenient transportation features and a high-capacity fuel tank, this machine is built to optimize the productivity of your operation by sticking around for the long haul.
Within the unit’s 7.5″-wide housing is a welded-steel impeller with 3/8″-thick steel blades. Dynamically balanced for reduced vibration, longer life and less stress on the engine, these loaders boast an effective, high-output (up to 4,680 CFM), debris-reducing design.

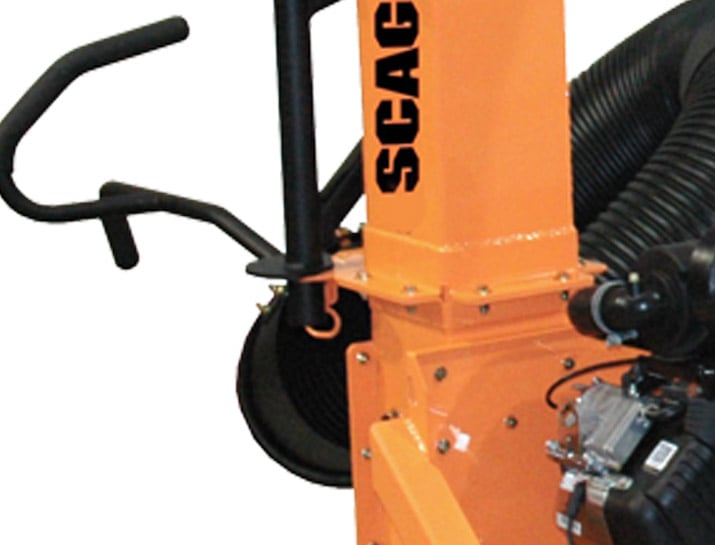

Transport lock safely secures the boom arm and hose when not in use; nylon bearing delivers smooth movement. A transport pin locks the nozzle to the loader to help protect the hose during transportation. Quick-detach hose also allows for quick and easy transport, storage and cleaning.
Within the unit’s 7.5″-wide housing is a welded-steel impeller with 3/8″-thick steel blades. Dynamically balanced for reduced vibration, longer life and less stress on the engine, these loaders boast an effective, high-output (up to 4,680 CFM), debris-reducing design.

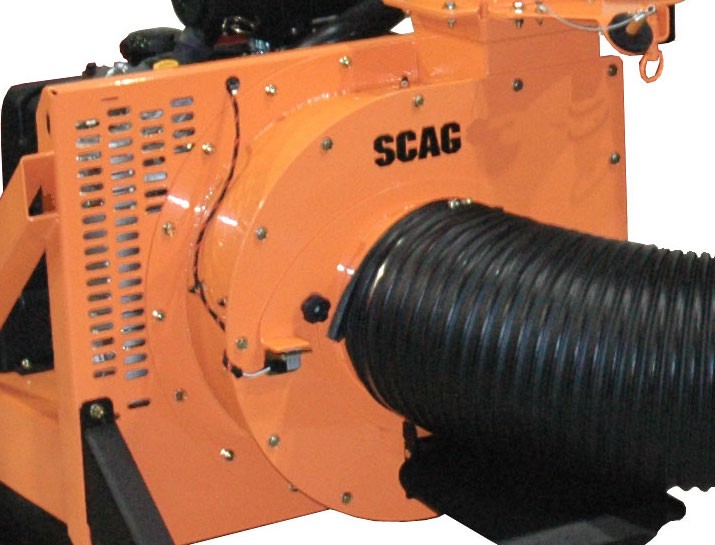

1/4″-thick, bolt-in, replaceable wear liner extends service life. Removable rear-housing cover allows easy access to impeller and wear plates.
Transport lock safely secures the boom arm and hose when not in use; nylon bearing delivers smooth movement. A transport pin locks the nozzle to the loader to help protect the hose during transportation. Quick-detach hose also allows for quick and easy transport, storage and cleaning.

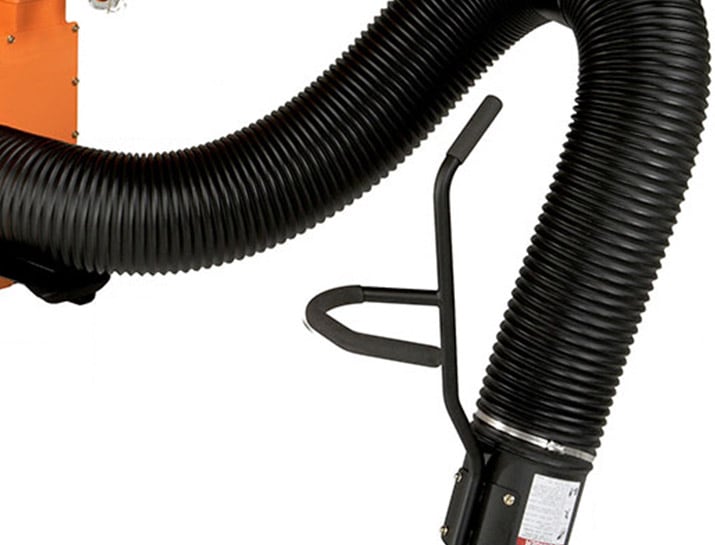

Padded, large-diameter handle is designed for increased leverage and easy maneuverability.

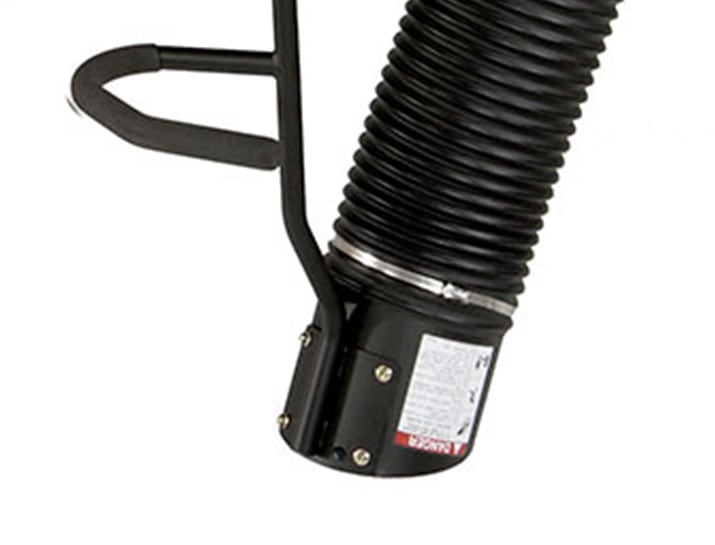

Large, replaceable intake nozzle is beveled to make debris pickup easy.
Four-inch skid risers with fork pockets have multiple install points to fit a wider variety of applications, or they can be completely removed.

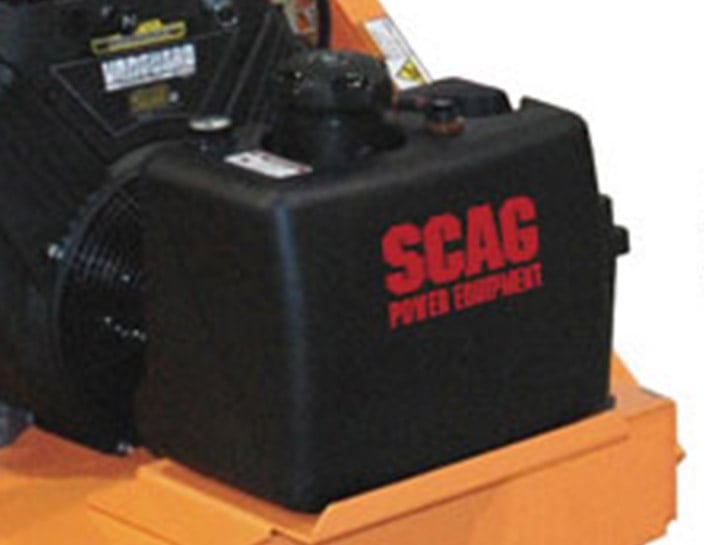

High-capacity, 5.5-gallon, plastic fuel tank with large filler neck for easy filling keeps you on the job. Built-in fuel gauge adds convenience and eliminates guesswork.

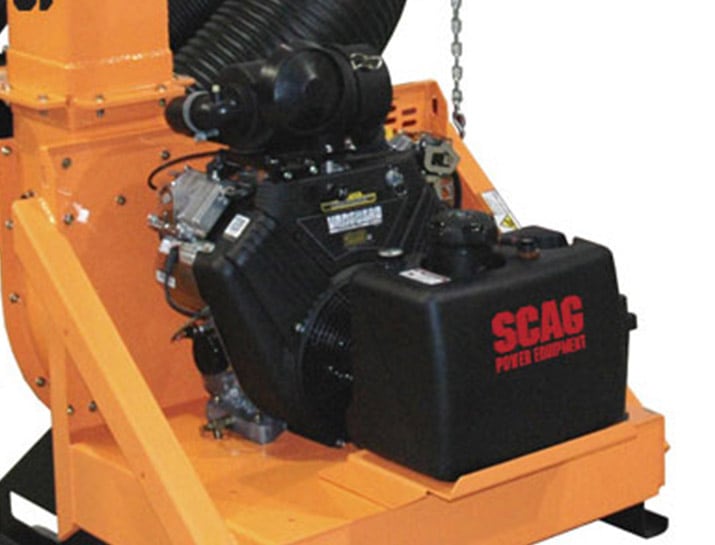

Powered by a 29 hp Vanguard® BIG BLOCK gasoline, V-twin engine with electric start.
| Product Specification | Industrial Skid-Mount | |
|---|---|---|
| Model | TLS20W-29BV | TLS20W-33BV |
| Engine | Briggs & Stratton® Vanguard® BIG BLOCK™, V-Twin, electric start | Briggs & Stratton® Vanguard® BIG BLOCK™, V-Twin, electric start |
| HP* | 29 | 33 |
| Fuel Capacity / Tank | 5.5 gallons – plastic tank with built-in fuel gauge | 5.5 gallons – plastic tank with built-in fuel gauge |
| CFM Output | 4,680 | 4,680 |
| Frame Construction | All-steel, welded | All-steel, welded |
| Impeller Construction | 4-blade, 3/8″-thick blades, all-steel, welded | 4-blade, 3/8″-thick blades, all-steel, welded |
| Impeller Mounting | Tapered locking hub | Tapered locking hub |
| Impeller Diameter / Width | 20″ / 6.5″ | 20″ / 6.5″ |
| Blower Housing Construction | Removable back panel for easy impeller and wear plate access | Removable back panel for easy impeller and wear plate access |
| Blower Housing Width | 7.5″ | 7.5″ |
| Blower Housing Wear Plates | Standard: 1/4″-steel, replaceable | Standard: 1/4″-steel, replaceable |
| Hose Specifications | 120″ length, 12″-diameter intake hose, 0.045 black thermoplastic rubber, wire helix with wearstrip | 120″ length, 12″-diameter intake hose, 0.045 black thermoplastic rubber, wire helix with wearstrip |
| Unit Mounting | 4″ steel skid risers | 4″ steel skid risers |
| Discharge Tube | Clear thermoplastic, 8″ diameter | Clear thermoplastic, 8″ diameter |
| Throttle Control | Commercial-grade, all-steel mechanicals, plastic debris cover | Commercial-grade, all-steel mechanicals, plastic debris cover |
| Highway Ready | n/a | n/a |
| Axle | n/a | n/a |
| Tires | n/a | n/a |
| Trailer Width | n/a | n/a |
| Height | 75″ (without skid mount attached) | 75″ (without skid mount attached) |
| Weight | 675 lb | 675 lb |
| Warranty | 2-Year Commercial; 2-Year Non-Commercial; 90-Day Rental | 2-Year Commercial; 2-Year Non-Commercial; 90-Day Rental |
| MSRP | $8,199 | $8,299 |
| * Engine power levels as rated by the manufacturer. All models subject to availability. Contact your local Scag dealer for specific availability information. |
||
