Aeration is vitally important for healthy turf, and it’s also an opportunity to expand your services. A new tool to tackle aeration with more efficiency, the stand-on AerStorm™ aerator allows you to get more done than ever before. Designed and engineered for long-lasting durability, improved productivity and all-day comfort, it’s time to take on your next challenge with the next generation of aeration.

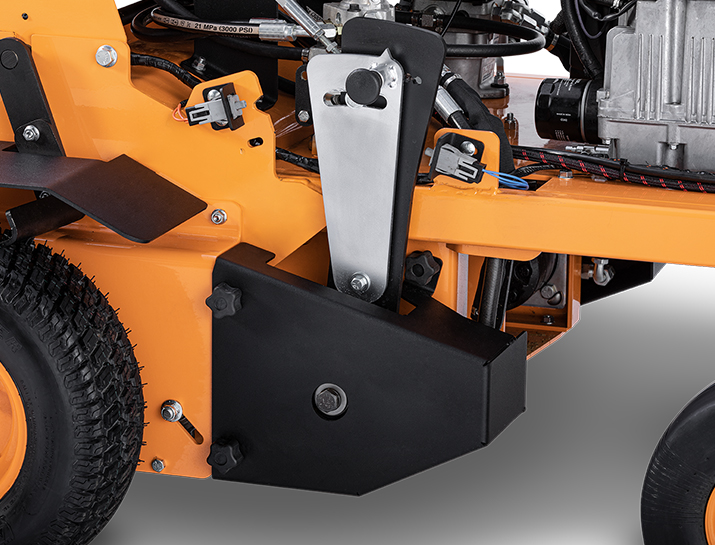

Featuring a simple and intuitive depth selection pin with easy-grip rubber knob, select aerating depths of 1” to 4” in 1/2” increments to meet the needs of each specific property. Hydraulic tine engagement, via a convenient foot-activated switch, allows you to keep your hands on the steering controls for maximum productivity and safety. Plus, a tine activation switch on the instrument panel prevents accidental engagement or disengagement while working or transporting.
Featuring a simple and intuitive depth selection pin with easy-grip rubber knob, select aerating depths of 1” to 4” in 1/2” increments to meet the needs of each specific property. Hydraulic tine engagement, via a convenient foot-activated switch, allows you to keep your hands on the steering controls for maximum productivity and safety. Plus, a tine activation switch on the instrument panel prevents accidental engagement or disengagement while working or transporting.

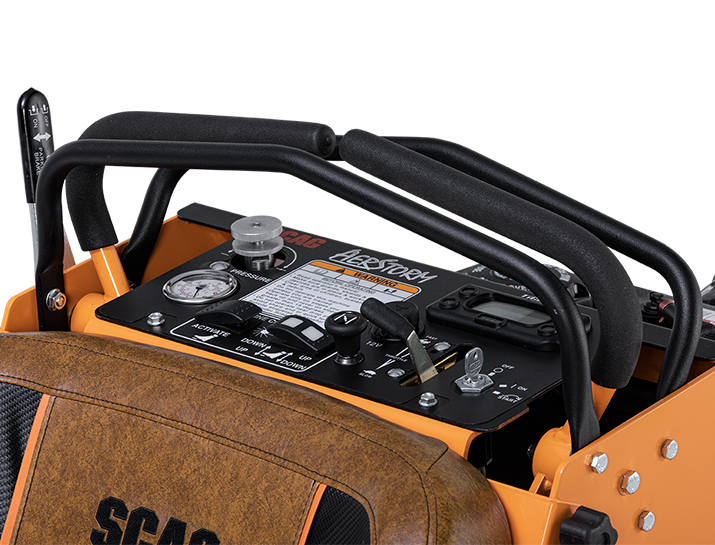

Incredibly easy to use, its ergonomic drive control levers make it a cinch to maneuver and allows you to get more done.

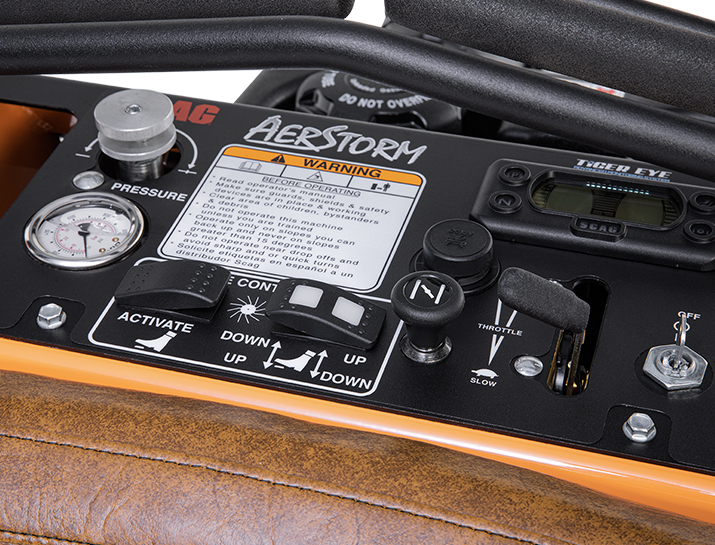

A full-featured and easy-to-view instrument panel keeps you informed of exactly what you need to know.

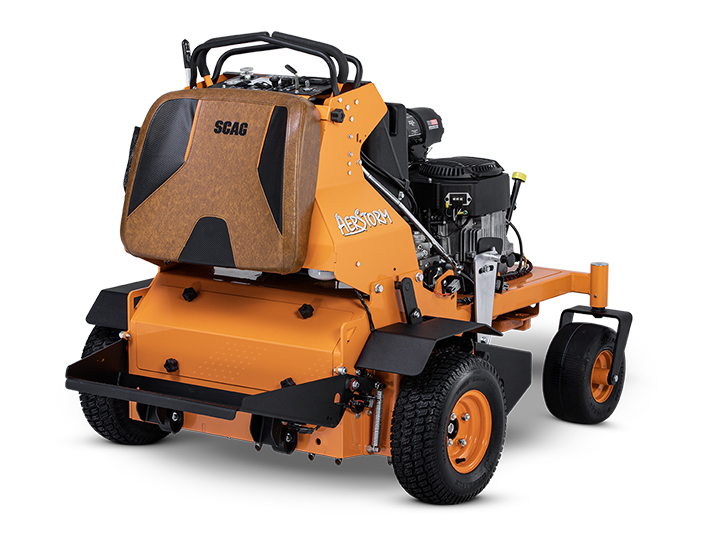

A spacious operator platform featuring suspension and a padded, bolstered cushion ensures a smooth, comfortable ride all day long.

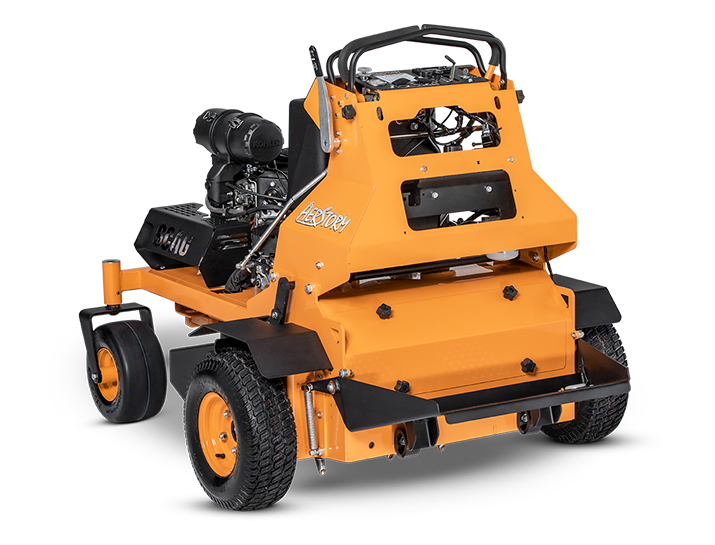

Removable cushion and lower panel allow quick and easy service access to hydro tank and tines.

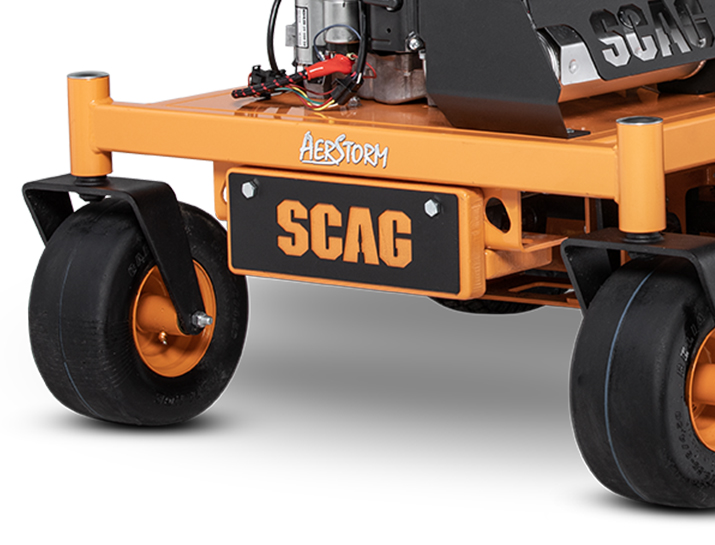

Heavy-duty, durable construction ensures years of dependable service and worry-free productivity.

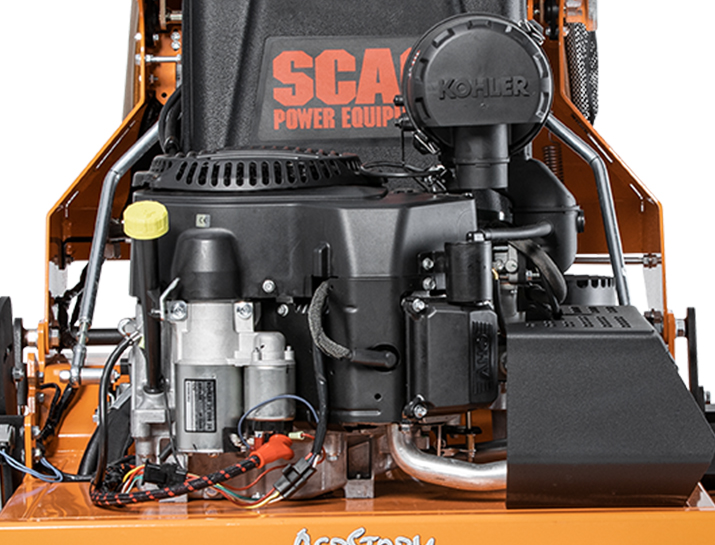

23 hp Kohler® Command Pro® engine packs the power you need alongside exceptional efficiency and dependable performance.
| Model | Tine Width | Engine | Horsepower | MSRP |
|---|---|---|---|---|
| AS30-23CV | 30″ | Kohler® Command PRO® | 23 | $14,999 |
| AS30-23CV-DS | 30″ | Kohler® Command PRO® – with Drop Seeder Kit | 23 | $16,499 |
| ** Specifications subject to change without notice. Actual ground speeds may vary. Accessories subject to availability. Contact your local Scag dealer for specific availability information. |
||||
| Engine Specification | |
|---|---|
| General Type | Heavy-duty industrial/commercial |
| Brand | Kohler Command Pro |
| Model | CV732 |
| Horsepower | 23.5 HP @ 3600 RPM |
| Torque | 40.3 ft-lbs. (peak) |
| Type | 4 cycle gas, twin-cylinder, air-cooled, OHV, vertical shaft engine |
| Displacement | 747 cc (45.6 cubic inch) |
| Cylinders | 2 cast-iron sleeves |
| Governor | Mechanical type governor with variable speed control set at 3600 rpm (±100 rpm), idle set at 1800 rpm (±150 rpm) |
| Air Intake Group | Large capacity 2-stage canister air filter |
| Exhaust Group | Single exhaust canister muffler |
| Fuel Pump Group | Integral fuel pump with inline fuel filter, internal fuel line vent; float feed; two barrel, adjustable idle, afterfire solenoid. |
| Oil Pump Group | Full pressure lube, with full-flow filter, 2 quart oil capacity |
| Starter/Electrical/Charging System | 12 volt “maintenance-free” sealed battery with alternator, solid state ignition with key start. 15 amp charging system, regulated. |
| Engine Deck | |
| Thickness | 1/4″ steel |
| Fuel Tank | 5.5 gallon (20.8 liters) tank with molded-in cup holder |
| Drive Wheels/Tires | 18 x 6.5 – 8 four-ply pneumatic tubeless, radius edge |
| Caster Wheels | 13 x 6.5 – 6 Flat-Free (semi-pneumatic) |
| Brakes | Lever actuated linkage to brakes on both drive wheels |
| Operator Platform | Heavy gauge steel with extruded star pattern for no-slip footing. Dual adjustable suspension for operator comfort level preference. |
| Operator Comfort Pad | Large heavily-bolstered operator cushion can be easily removed without tools for access to hydraulics |
| Drive System | |
| Type | Hydro drive with two variable displacement pumps and two cast-iron high-torque wheel motors for independent control of each drive wheel |
| Hydro Pumps | Two Hydro-Gear PG Series 10cc pumps with dump valves for movement without running engine; one cooling fan |
| Drive Wheel Motors | Two Parker TG 14.5 cu. inch cast-iron high torque wheel motors |
| Hydro Fluid Cooling Group | 3.0 qt. capacity cooling reservoir; uses SAE 20W50 fluid and 10 micron filter |
| Steering/Travel Control | Twin lever steering control with individual control to each wheel |
| Dump Valves | Allows for movement without engine running |
| Axles | 1.25″ heavy-duty, straight motor shafts |
| Wire Harness | 14 and 16 gauge wire |
| Safety Group | Footplate-actuated operator presence system interlock to engine kill |
| Forward Speed Range | 0 up to 7.0 mph |
| Reverse Speed Range | 0 up to 3.0 mph |
| Product Specification | |
| Type | Plug-style aeration. Mid/under-belly mount. |
| Aerating Width | 30″ |
| Aerating Depth/Adjustment | 1” to 4” in 1/2” increments. Simple and intuitive depth selection pin with easy-grip rubber knob. |
| Tines | 48 self-cleaning, replaceable, steel coring tines |
| Tine Activation & Pressure | Hydraulic tine engagement (raise and lower) via a foot-activated switch. Tine activation switch on the instrument panel prevents accidental engagement/disengagement while working or transporting. Adjustable hydraulic down-pressure helps to penetrate even the hardest and driest soils to ensure effective aeration performance in all conditions. |
| ** Specifications subject to change without notice. Actual ground speeds may vary. Accessories subject to availability. | |
| Product Specification | AerStorm |
|---|---|
| Length | 68.6″ |
| Width | 49.8″ |
| Height | 51.2″ |
| ** Specifications subject to change without notice. Actual ground speeds may vary. Accessories subject to availability. | |
Accessory shown as example only. Actual appearance and/or placement of the accessory may vary by specific model.
